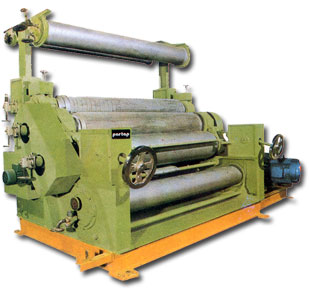

 Partap
introduces Paper Corrugating Machine with latest
Technology. Flute Rolls are minutely finished and
mounted on speherical Roll Bearings, to give perfect
impression on board. The setting of flute roll is from
one side only. A motor is fitted to keep the gun rolls
rotation for agitation of the gun while the gun unit
is disengaged from the flute rolls. A steam shower is
provided for perfect formation of the flutes.
Motorised self loading reel stand is additionally
provided with machine.
|
TECHNICAL
DATA |
|
MODEL |
PHS
200 |
PHS
200 |
PHS
200 |
PHS
200 |
|
SIZE |
45" |
52" |
62" |
66" |
|
MOTOR
H.P. |
9 |
9 |
9.5 |
12 |
|
STEAM
REQUIRED |
300
KG/HR |
300
KG/HR |
400
KG/HR |
400
KG/HR |
|
STEAM
PRESSURE |
8.10
KG/CM2 |
8.10
KG/CM2 |
KG/CM2
|
8.10
KG/CM2 |
|
MAX
OUT PUT P.M. WITH STEAM HEATING |
200
FT. |
200
FT. |
200
FT. |
200
FT. |
|
|
|
 |
|
